Brand Name : | Plasma Consumables |
Model Number : | 0558006020 |
Certification : | ROHS/ SGS |
Price : | negotiation |
Payment Terms : | T/T or western Union |
Supply Ability : | 10,000pcs per month |
Delivery Time : | Prompt goods |

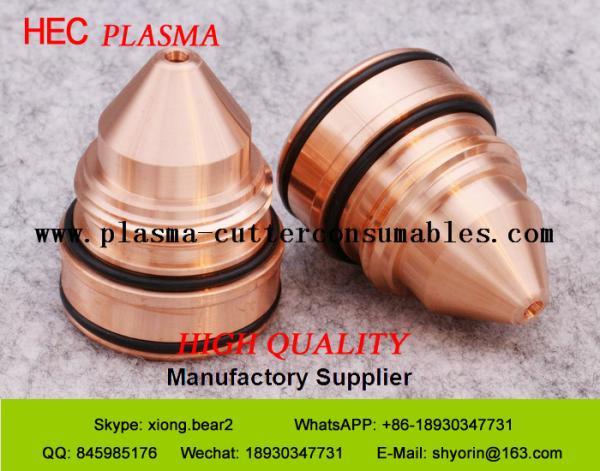

Esab Plasma Cutter Nozzle 0558006020 2.0mm For PT-36 Plasma Cutting
Consumables
Shanghai ZhouBo Welding & Cutting Technology is a professional
manufacturer plasma consumables electrode, nozzle, shield, swirl
ring, inner cap, retaining cap, water tube, torch body and so on.
We have tens years experience to export many countries, and our
products is very competitive in the world.
Our company adopts modern management mode and devotes itself to new
high performance design and production of welding & cutting
equipments, with continuous technique advantages innovation .All
our staff are striving to realize the aim of "Create Chinese Brand
,Build First-Class Enterprise ",with the spirit of "Being honest
and pragmatic ,making pioneering efforts and seeking perfection
with persistency."
Company commitment: thinking what customers think, worrying what
customers worry, in time delivery and high tracking service.
Machine | HEC NO. | Ref NO. | Description |
PT-36 | E21881 | 37081 | Shield Retainer |
E23030 | 558006130 | Shield Cup, 3mm | |
E23041 | 558006141 | Shield Cup, 4.1mm | |
E23066 | 558006166 | Shield Cup, 6.6mm | |
E23099 | 558006199 | Shield Cup, 9.9mm | |
E23124 | 558007624 | Shield Cup, 2.4mm | |
E2744 | 21944 | Shield Gas Diffuser, Standard | |
E2596 | 21796 | Shield Gas Diffuser, Low Current | |
E21096 | 22496 | Shield Gas Diffuser, Reverse | |
E11882 | 37082 | Nozzle Retaining Cap, Standard | |
E1826 | 22026 | Nozzle Tip, 50A | |
E1829 | 22029 | Nozzle Tip, 100A | |
E1830 | 22030 | Nozzle Tip, 150A | |
E1831 | 22031 | Nozzle Tip, 200A | |
E1832 | 22032 | Nozzle Tip, 250A | |
E1834 | 22034 | Nozzle Tip, 360A | |
E1833 | 22033 | Nozzle Tip, 400A | |
E6827 | 22027 | Nozzle Base, 50A | |
E6828 | 22028 | Nozzle Base, 100-400A | |
E12910 | 558006010 | Nozzle, 1mm | |
E12914 | 558006014 | Nozzle, 1.4mm | |
E12918 | 558006018 | Nozzle, 1.8mm | |
E12920 | 558006020 | Nozzle, 2mm | |
E12923 | 558006023 | Nozzle, 2.3mm | |
E12925 | 558006025 | Nozzle, 2.5mm1 | |
E12928 | 558006014 | Nozzle, 2.8mm | |
E12930 | 558006030 | Nozzle, 3mm1 | |
E12936 | 558006036 | Nozzle, 3.6mm1 | |
E12941 | 558006041 | Nozzle, 4.1mm1 | |
E02859 | 558005459 | Electrode L.C., O2/N25 | |
E02628 | 558003928 | Electrode Std., O2/H355 | |
E02614 | 558003914 | Electrode Std., O25 | |
E72857 | 558005457 | Baffle, 4 Hole x 0.0221 | |
E72434 | 558002534 | Baffle, 4 Hole x 0.032 CCW1 | |
E72433 | 558002533 | Baffle, 4 Hole x 0.0321 | |
E72225 | 558001625 | Baffle, 8-Hole x 0.0471 | |
E72430 | 558002530 | Baffle, 8-Hole x 0.047 CCW1 | |
E02624 | 558003924 | Electrode Holder | |
E83404 | 0558003804 | Torch Body | |
PT-37 | E43703 | 0558006603 | SHIELD 30-40 AMP PT-37 |
E43702 | 0558006602 | SHIELD 50-90 AMP PT-37/38 | |
E43701 | 0558006601 | SHIELD 100 AMP PT-37/PT38GOUGE | |
E43700 | 0558006600 | RETAINING CUP W/THREADS PT-37 | |
E13318 | 0558005218 | Nozzle 30-40 AMP PT-37 | |
E13578 | 0558004878 | Nozzle 50 AMP PT-37 | |
E13619 | 0558005219 | Nozzle 70 AMP PT-37/38 | |
E13579 | 0558004879 | Nozzle 100 AMP PT-37 | |
E03620 | 0558005220 | Electrode 30-40A PT-37 | |
E03575 | 0558004875 | Electrode 50-100A PT-37 | |
E73617 | 0558005217 | Gas Baffle30-70A PT-37/38 | |
E73570 | 0558004870 | Gas Baffle90-100A PT-37/38 | |
E93590 | 0558004890 | 4.5Feet(1.4M)PT-37 | |
E93591 | 0558004891 | 17Feet(5.2M)PT-37 | |
E93592 | 0558004892 | 25Feet(7.6M)PT-37 | |
E93593 | 0558004893 | 50Feet(15.2M)PT-37 |
Technical Support:
Plasma cutting is a process that cuts through electrically conductive materials
by means of an accelerated jet of hot plasma. Typical materials cut
by this process include steel, aluminum, brass and copper though other conductive metals may be cut as well.
Plasma cutting is often used in fabrication and welding shops,
automotive repair and restoration, industrial construction, salvage
and scrapping operations. Due to the high speed, precision cuts,
combined with low cost of operation, plasma cutting sees a
widespread usage from large scale industrial CNC applications down
to small hobbyist shops.
![]() |
